SuperSTAR Documentation : Derivations - SuperWEB2

Derivations allow you to create new calculated items within a table. For example, you can add together values in other columns, or use mathematical and statistical functions.

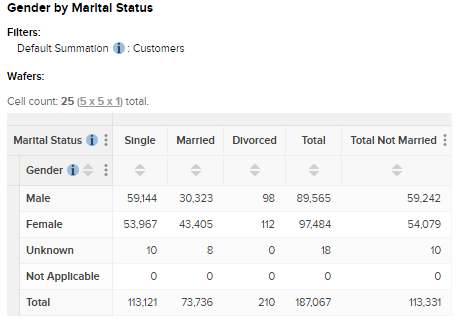

For example, in the following table a derivation has been added to calculate the total number of customers who are not married (the total number of Single and Divorced customers):

Derivations are saved if you save the table in SuperWEB2, and will remain in the table as long as you do not remove the field they are derived from, or change the set of field values from the derived field that are in the table. For example, the above derivation for Marital Status would automatically be removed if you removed the field value Married from the table or added the field value Unknown to this field.

Changes to other fields do not affect derivations (for example adding or remove field values from Gender would not affect the derivation on Marital Status). You can also move the derived field to a different axis without losing your derivations.

Create a Derivation

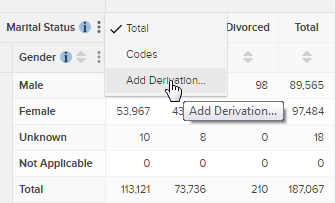

To create a derivation, click the  menu option in the table next to the name of the field, and select the Add Derivation option:

The Define Derivation dialog displays:

To create the derivation:

1. In the Name field, enter a name for the derivation. This name will be displayed in the table.
2. Use the Formula field to enter your formula.

   • You can either type the formula in manually, or use the buttons, drop-down list of functions and the Field Values list to select and add field items and mathematical and statistical functions.
   • You can double-click a field value in the list to add it to the formula. Alternatively, select one or more field items (hold down Shift or Ctrl to make multiple selections) and use the Add button (this will add the sum of the selected field items to the formula).
   • To refer to a field value in your formula, you must use the value codes (in this example, the code V1 represents Single, V2 represents Married, and so on).
   • To add one of the functions, you can either type it manually into the formula, or select from the drop-down list as follows (see below for a description of the available functions):
     1. In the Field Values list, select the item or items you want to use with the function.
     2. Select the function from the drop-down list. Some of the functions take one field value as an argument, while others take two or more; some of the functions will be greyed out if the number of selected items does not match the number of arguments they take.
     3. Click Add.
3. When you have finished creating your formula, click Create to add it to your table.

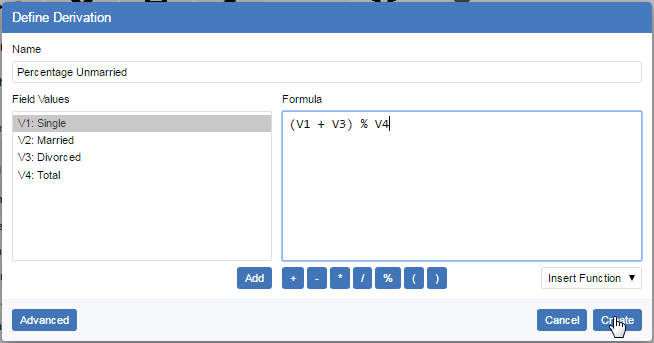

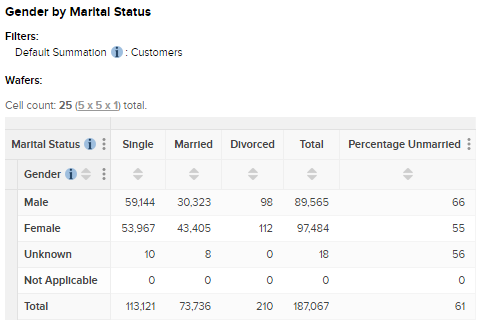

For example:

Derivation Functions

In addition to the mathematical operators (such as +, -, * and /) you can also use some functions in your derivations:

Exp

Sqrt

Round

Ln

Sum

Forecast

Forecast(V1:V5;1)

Forecast(V1:V5;2)

Forecast(V1:V5;-1)

Decimal Values in Formulas

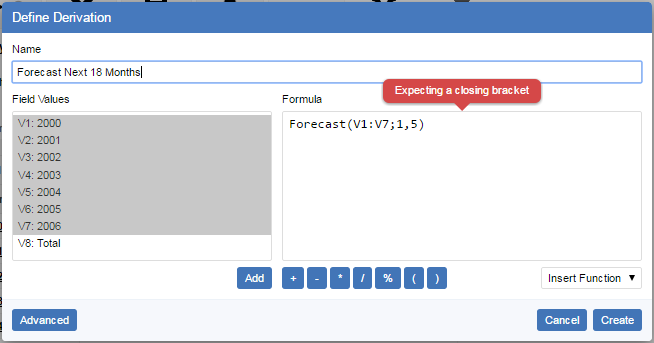

For example, the following formula will not be accepted by SuperWEB2, as the forecast period has been written as 1,5:

To save the formula, you must modify the value to 1.5:

Edit a Derivation

If you want to make changes to a derivation after you have created it, click the menu next to the item in the table and select Edit Derivation.

SuperWEB2 displays the Define Derivation dialog, where you can make changes. When you have finished, click Save to apply the changes and save your updates to the table.

Create/Edit a Derivation: Advanced Options

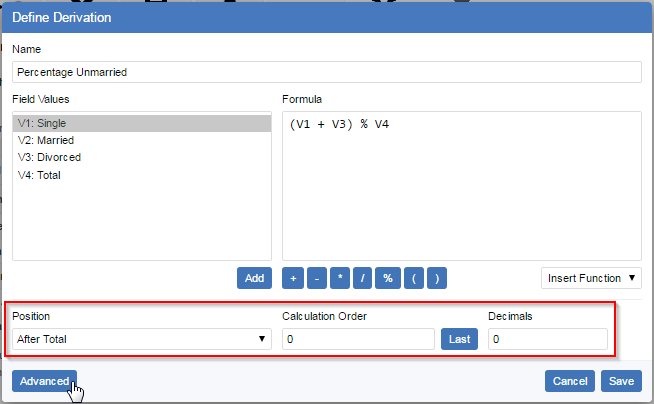

When you are creating or editing a derivation, you can click the Advanced option at the bottom of the Define Derivation dialog to access some advanced options:

The advanced options are as follows:

Delete a Derivation

To remove a derivation, click the menu next to the item in the table and select Delete Derivation.
